Cleaning Equipment
The QUICKER cleaning solutions for Flexo respond to the growing needs of the packaging printing industry in terms of increasing process efficiency and printing quality
Post-print plate cleaning machine QUICKER C
The QUICKER C post-printing plate cleaning machine washes rinses and dries flexographic plates. It effectively cleans off all types of ink. The construction of the cleaner allows the safe handling of any type of flexographic plate. It is adapted for the connection of the QUICKER AF automatic plate feeder or a conveyor belt. Simplicity, ease of use, low operating costs and robustness are the features that customers appreciate the most in QUICKER C Series.
The plate cleaning machine automates the after-printing cleaning process and increases the productivity and efficiency of cleaning printing plates.

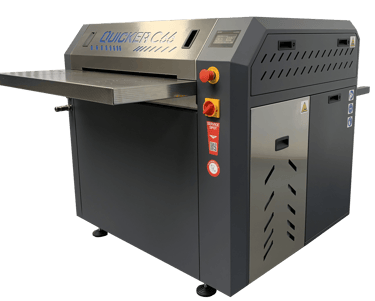

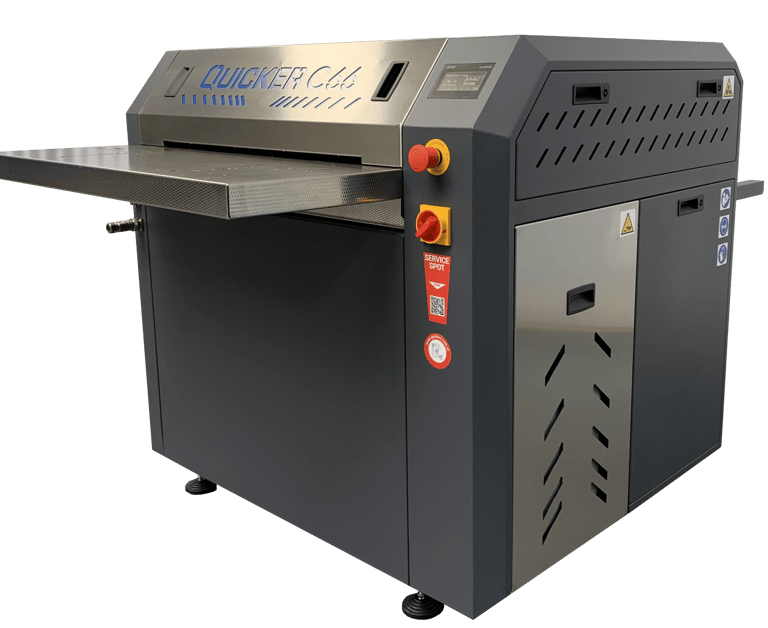

QUICKER C66
Working width: 660 [mm]
Minimum plate length: 200 [mm]*
Machine dimensions: W. 1200 H. 1100 L. 2100 [mm]
Power supply: 230 [V] 50 [Hz]
Additional connections required: Air connection 6 [bars]
Liquid tank capacity: 20 [L] original QUICKER tank
Water tank capacity: 20 [L] original QUICKER tank
Working width: 1400[mm]
Minimum plate length: 200 [mm]*
Machine dimensions: W. 1900 H. 1100 L. 4100 [mm]
Power supply: 400 [V] 50 [Hz]
Additional connections required: Air connection 6 [bars]
Liquid tank capacity: 60 [L]
Water tank capacity: 30 [L]
Working width: 960 [mm]
Minimum plate length: 200 [mm]*
Machine dimensions: W. 1500 H. 1100 L. 2550 [mm]
Power supply: 230 [V] 50 [Hz]
Additional connections required: Air connection 6 [bars]
Liquid tank capacity: 35 [L]
Water tank capacity: 15 [L]
So, Which one do you think is suitable to improve your business?!
QUICKER C96
QUICKER C140
Post-print plate cleaning machine QUICKER C
The QUICKER C post-printing plate cleaning machine washes rinses and dries flexographic plates. It effectively cleans off all types of ink. The construction of the cleaner allows the safe handling of any type of flexographic plate. It is adapted for the connection of the QUICKER AF automatic plate feeder or a conveyor belt. Simplicity, ease of use, low operating costs and robustness are the features that customers appreciate the most in QUICKER C Series.
The plate cleaning machine automates the after-printing cleaning process and increases the productivity and efficiency of cleaning printing plates.
